Car#

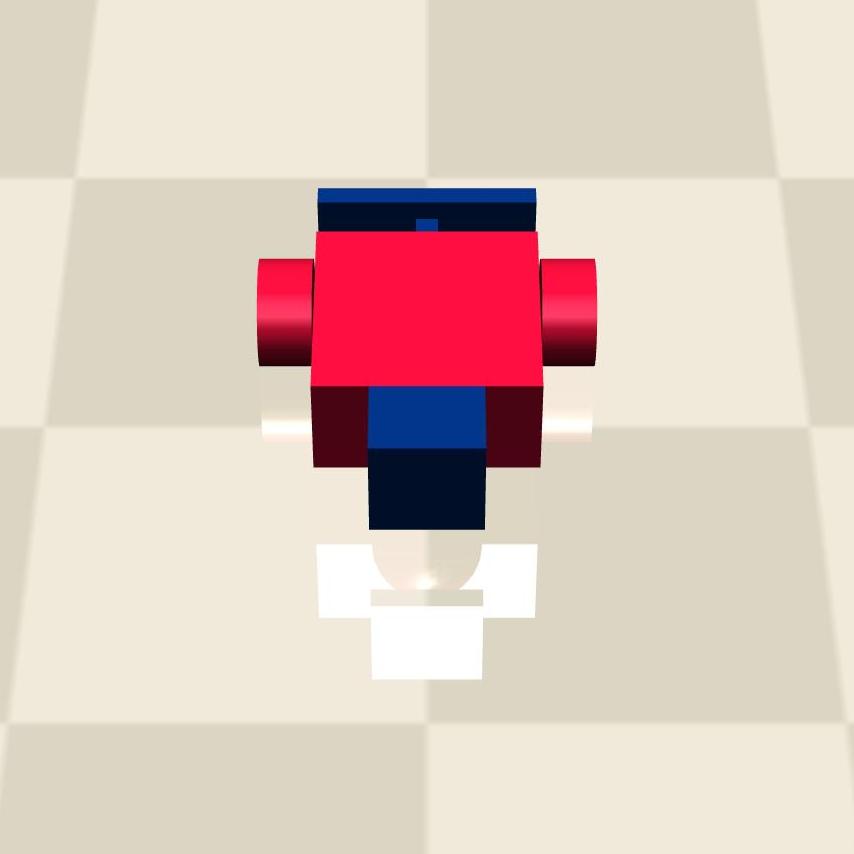

front |

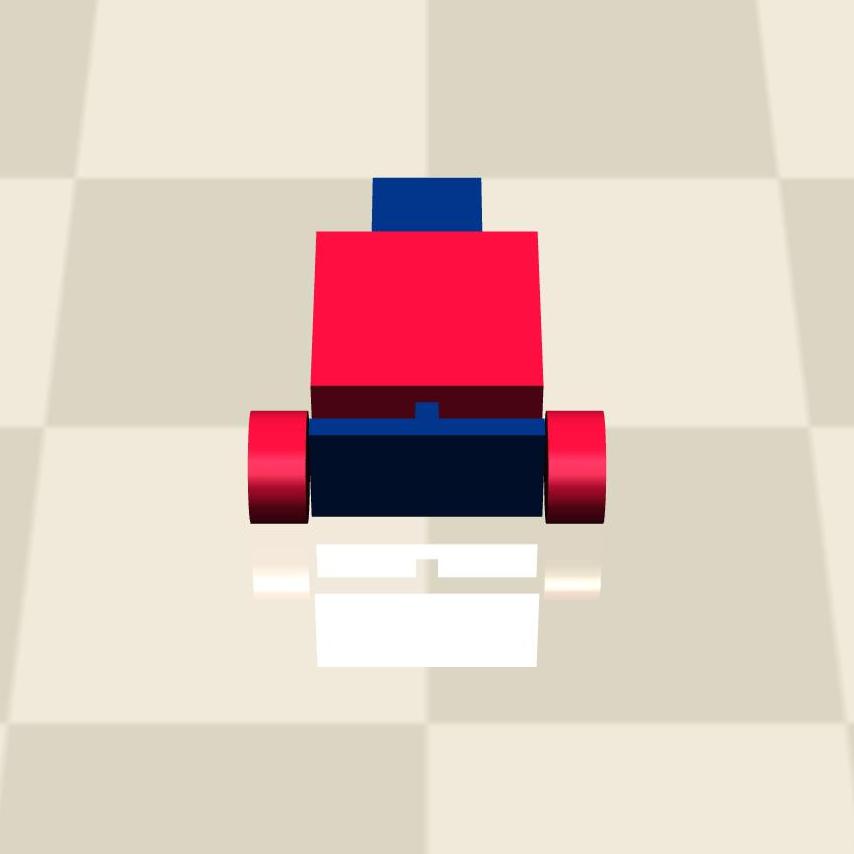

back |
left |
right |
A slightly more complex robot, moving in three dimensions, has two independently driven parallel wheels and one free-rolling rear wheel. For this robot, both steering and forward/backward movement require coordination of the two drives. It is similar in design to a simple robot used for educational purposes.
Specific Action Space |
Box(-1.0, 1.0, (2,), float64) |
Specific Observation Shape |
(24,) |
Specific Observation High |
inf |
Specific Observation Low |
-inf |
Specific Action Space#
Num |
Action |
Control Min |
Control Max |
Name (in corresponding XML file) |
Joint/Site |
Unit |
---|---|---|---|---|---|---|
0 |
To applied on left wheel |
0 |
1 |
left |
hinge |
Force (N) |
1 |
To applied on right wheel |
0 |
1 |
right |
hinge |
Force (N) |
Specific Observation Space#
Size |
Observation |
Min |
Max |
Name (in corresponding XML file) |
Joint/Site |
Unit |
---|---|---|---|---|---|---|
9 |
Quaternions of the rear wheel which are turned into 3x3 rotation matrices. |
-inf |
inf |
ballquat_rear |
ball |
unitless |
3 |
Angle velocity of the rear wheel. |
-inf |
inf |
ballangvel_rear |
ball |
anglular velocity (rad/s) |
3 |
accelerometer |
-inf |
inf |
accelerometer |
site |
acceleration (m/s^2) |
3 |
velocimeter |
-inf |
inf |
velocimeter |
site |
velocity (m/s) |
3 |
gyro |
-inf |
inf |
gyro |
site |
anglular velocity (rad/s) |
3 |
magnetometer |
-inf |
inf |
magnetometer |
site |
magnetic flux (Wb) |
Specific Starting Randomness#
Nothing.
Specific Episode End#
Nothing.
