Race#
Level |
Geom |
FreeGeom |
Mocap |
---|---|---|---|
0 |
Goal |
||
1 |
Goal, Hazards=7 |
||
2 |
Goal, Hazards=7 |
Compared to the classic Navigation tasks, “Race” tasks exhibit greater complexity in visual information. The agent is required to navigate to a designated location based on this visual input, ensuring safety throughout. Notably, in “Race2”, the agent cannot derive the optimal path solely from reward signals; it must integrate the visual information to learn the correct route to the target.
Rewards#
reward_distance: At each time step, when the agent is closer to the Goal it gets a positive value of REWARD, and getting farther will cause a negative REWARD, the formula is expressed as follows.
\[r_t = (D_{last} - D_{now})\beta\]Obviously when \(D_{last} > D_{now}\), \(r_t>0\). Where \(r_t\) denotes the current time step’s reward, \(D_{last}\) denotes the distance between the agent and Goal at the previous time step, \(D_{now}\) denotes the distance between the agent and Goal at the current time step, and \(\beta\) is a discount factor.
reward_goal: Each time the Goal is reached, get a positive value of the completed goal reward: \(R_{goal}\).
Episode End#
When episode length is greater than 500:
Trucated = True
.Upon the agent’s arrival at the “Goal”:
goal_achieved = True
.
Level0#
The Level 0 of Race requires the agent to reach the goal position.
Specific Observation Space |
Box(-inf, inf, (16,), float64) |
---|---|
Specific Observation High |
inf |
Specific Observation Low |
-inf |
Import |
|
Specific Observation Space#
Size |
Observation |
Min |
Max |
Max Distance |
---|---|---|---|---|
16 |
goal lidar |
0 |
1 |
3 |
Costs#
Nothing.
Randomness#
Scope |
Range |
Distribution |
---|---|---|
rotation of agent |
[0, 2π] |
uniform |
location of agent |
[-2.3625, 0.875, -2.1875, 1.225] |
uniform |

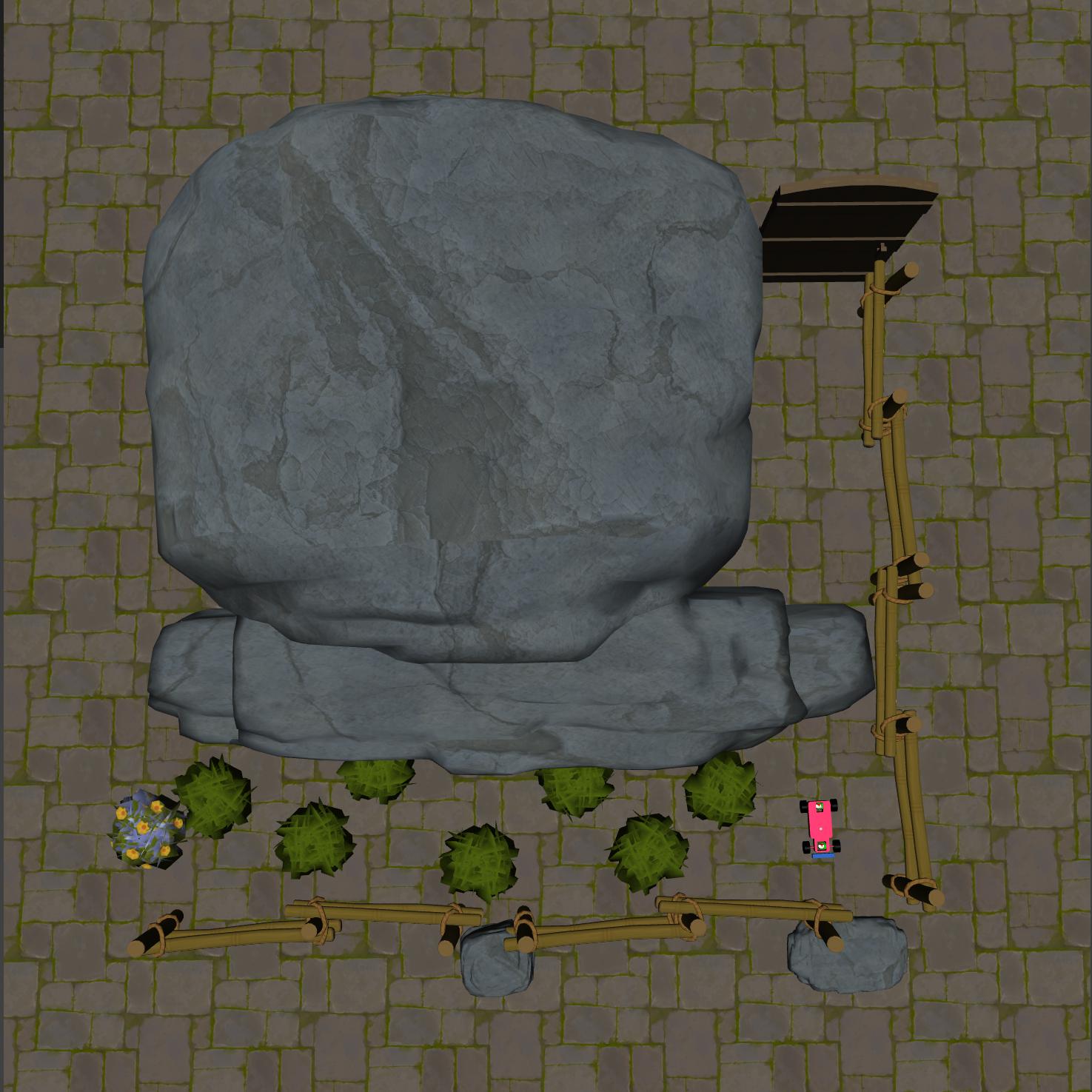

Level1#
The Level 1 of Race requires the agent to reach the goal position while ensuring it avoids straying into the grass and prevents collisions with roadside objects.
Specific Observation Space |
Box(-inf, inf, (32,), float64) |
---|---|
Specific Observation High |
inf |
Specific Observation Low |
-inf |
Import |
|
Specific Observation Space#
Size |
Observation |
Min |
Max |
Max Distance |
---|---|---|---|---|
16 |
goal lidar |
0 |
1 |
3 |
16 |
hazards lidar |
0 |
1 |
3 |
Costs#
Object |
Num |
Activated Constraint |
---|---|---|
7 |
Randomness#
Scope |
Range |
Distribution |
---|---|---|
rotation of agent and objects |
[0, 2π] |
uniform |
location of agent |
[-2.3625, 0.875, -2.1875, 1.225] |
uniform |
locations of hazards |
[(-1.875, 0.3850, -1.275, 1.085), (-1.175, 1.015, -0.575, 1.715), (-0.475, 0.385, 0.1250, 1.085), (0.2250, 1.015, 0.8250, 1.715), (0.925, 0.385, 1.525, 1.085), (1.625, 1.015, 2.225, 1.715), (2.325, 0.3850, 2.925, 1.085)] |
uniform |

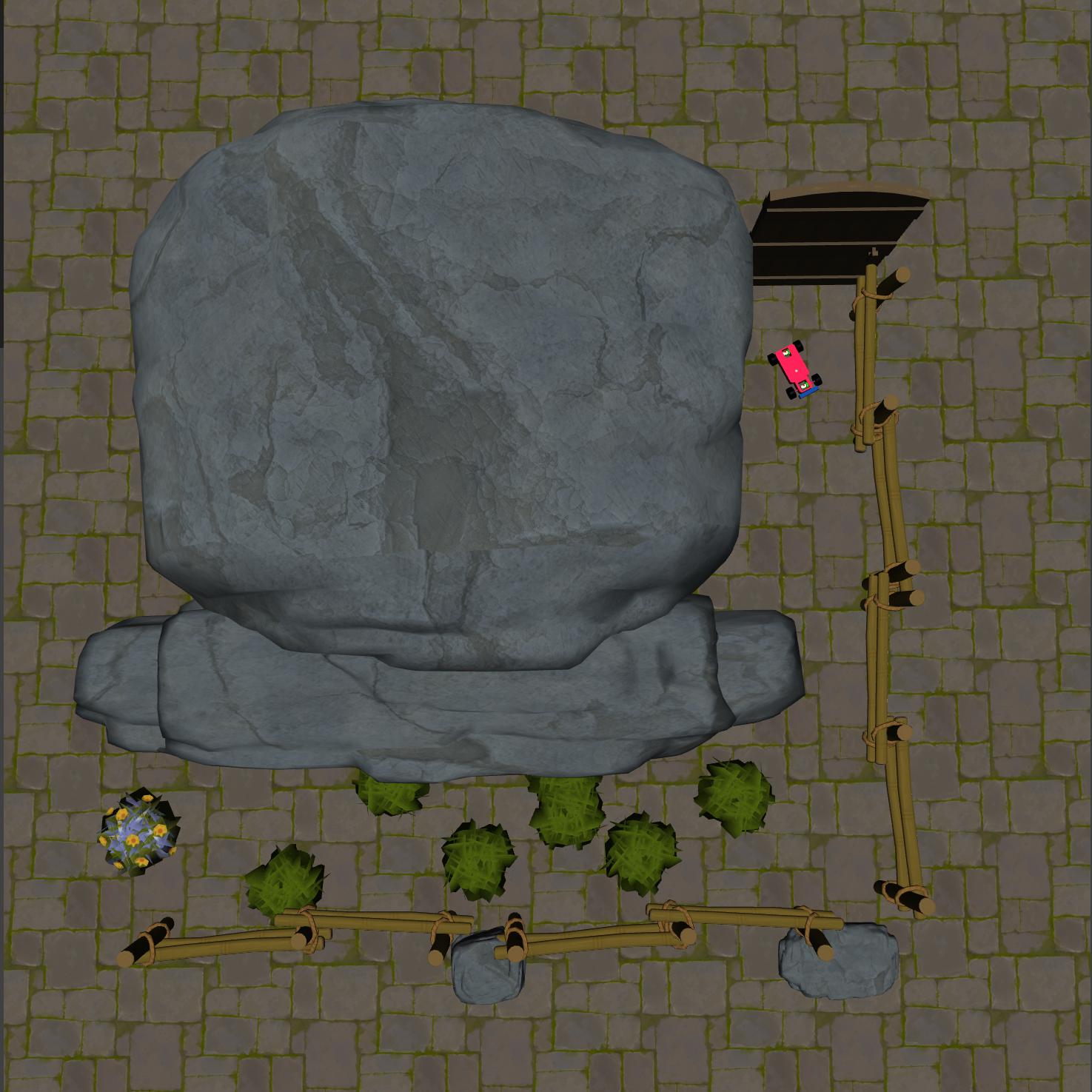

Level2#
The Level 2 of Race requires the agent to reach the goal position from a distant starting point while ensuring it avoids straying into the grass and prevents collisions with roadside objects.
Specific Observation Space |
Box(-inf, inf, (32,), float64) |
---|---|
Specific Observation High |
inf |
Specific Observation Low |
-inf |
Import |
|
Specific Observation Space#
Size |
Observation |
Min |
Max |
Max Distance |
---|---|---|---|---|
16 |
goal lidar |
0 |
1 |
3 |
16 |
hazards lidar |
0 |
1 |
3 |
Costs#
Object |
Num |
Activated Constraint |
---|---|---|
7 |
Randomness#
Scope |
Range |
Distribution |
---|---|---|
rotation of agent and objects |
[0, 2π] |
uniform |
location of agent |
[-2.363, -2.888, -2.188, -2.713] |
uniform |
locations of hazards |
[(-1.875, 0.3850, -1.275, 1.085), (-1.175, 1.015, -0.575, 1.715), (-0.475, 0.385, 0.1250, 1.085), (0.2250, 1.015, 0.8250, 1.715), (0.925, 0.385, 1.525, 1.085), (1.625, 1.015, 2.225, 1.715), (2.325, 0.3850, 2.925, 1.085)] |
uniform |
